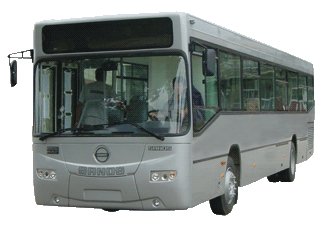

The SANOS S-213
Award winning Urban and City Coach


      The bus SANOS model S 213 belongs to the class of city buses. It is designed for city transportation of passengers. According to the latest European standard, it has DAF engine Euro 3, PE 228 C. The engine is with power of 228 kW (310 Ps). For bigger passenger’s security and better performance of the bus, it has modern systems ABS, ASR and automatic gearbox Voith D854.3 with Retarder. The bus has 36+1 seats. The bus is with 3.073 mm height, 2.500 mm width and 12.000 mm length. Fuel tank capacity is 300 liters.



TECHNICAL INFORMATION



DIMENSIONS

Height:

 3073 mm

Internal height:

2173 / 1998 mm

Entry height (from the road):

340 mm

Length:

12000 mm

Length from front part by front axle:

2635 mm

Length from main axle by rear part:

3490 mm

Distance between axels:

5875 mm

Width:

2500 mm

PERFORMANCE

Maximum speed:

75 km/h

Number of seats:

36 + 1

Chassis:

SANOS

Vehicle own weight:

10100 kg

Carrying capacity of axles



Front axle:

6000 kg

Rear axle:

11500 kg

Vehicle maximum:

17500 kg

Turning circle:

22420 mm

POWER UNIT

Engine - manufacturer / type:

DAF / PE 228 CE

Engine power:

228 kw / 310 hp

Engine displacement:

9.2 L

Type and number of cylinders:

R6

Max. torque Nm / 1/ min:

1275 / 1100 - 1600

Compression degree:

17 : 1

Gearbox - manufacturer / type:

D 854,3 - Voith

Transmission:

4 + R

Differential:

i = 5,648

Steering-wheel - manufacturer / type:

PPT / 8045

Axles

  Front:

DAF 152 N - disk

  Rear:

DAF 1347 HAS - disk

OTHER INFORMATION

Pneumatics - wheels:

275 / 70 R 22,5 - (6)

Rims / dimensions:

7,5 x 22,5

Brakes:

pneumatic / double - circle

Systems:

ABS / ASR

Retarder:

Voith D854.3

Batteries:

2 x 12 V / 180 Ah

Air conditioner:

Konvekta KL - 70T

Tank volume:

300 lit.

  • Brakes: front – disks, rear – drum.
  • Suspension: shock absorbers and air bellows.
  • Heating system: water heater and 3 calorifers.
  • Tupe and number of doors: 3 x double winged doors – pneumatic.
  • Option: engine DAF PE183C Euro 3, CIMMINS ISB275 Euro 3.
