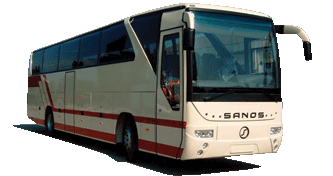

The SANOS S-415
Intercity and Suburban Coach





      The bus SANOS model S-415 belongs to the class of suburban and intercity buses. According to the wishes of the customers, we can deliver this bus in both versions. Regarding the last European standard, we are mounting DAF engines, type PE 228 C Euro 3. The engine power is 228 kW (310 Ps). For bigger passenger’s security and better performance of the bus, we are mounting modern systems ABS, ASR and Voith R120 Retarder. Our respectfull clients can choose Cummins engine, and as additional equipment we are installing mini-kitchens and refrigerators. The bus is with 3.086 mm height, 2.500 mm width and 12.000 mm length. Fuel tank is with capacity of 270 liter. Luggage compartment is 11 m³.



TECHNICAL INFORMATION



DIMENSIONS

Height:

 3086 mm

Internal height:

1950 mm

Entry height (from the road):

340 mm

Length:

12000 mm

Length from front part by front axle:

2680 mm

Length from main axle by rear part:

3270 mm

Distance between axels:

6050 mm

Width:

2500 mm

PERFORMANCE

Maximum speed:

120 km/h

Number of seats:

53 + 2

Chassis:

SANOS

Vehicle own weight:

11600 kg

Carrying capacity of axles



Front axle:

7500 kg

Rear axle:

13000 kg

Vehicle maximum:

20500 kg

Turning circle:

23000 mm

POWER UNIT

Engine - manufacturer / type:

DAF PE 228 C

Engine power:

228 kw / 310 hp

Engine displacement:

9200 cm³

Type and number of cylinders:

R6

Max. torque Nm / 1/ min:

1270 / 1100 - 1700

Piston diameter / motion:

118 / 140 mm

Cmpression degree:

17,5 : 1

Gearbox - manufacturer / type:

ZF / 6S-85

Transmission:

6 + R

Differential:

i = 3,91

Steering-wheel - manufacturer / type:

PPT / 8042

Clutch - manufacturer / type:

F&S / GF 420

Axles

  Front:

DAF 152 N

  Rear:

DAF 13,47 HAS

OTHER INFORMATION

Pneumatics - wheels:

295 / 80 R 22,5 - (6+1)

Rims / dimensions:

8,25 x 22,5

Brakes:

pneumatic / double - circle

Systems:

ABS / ASR

Retarder:

Voith R120

Batteries:

2 x 12 V / 180 Ah

Air conditioner:

Konvekta KL - 70T

Tank volume:

270 lit.

Gradient:

40 %

Laguage compartment:

 6,5 m³

  • Brakes: all – drum.
  • Suspension: shock absorbers, air bellows and back stabilizer.
  • Heating system: water heater and radiators.
  • Tupe and number of doors: 2 x single winged doors – pneumatic.
  • Option: engine CIMMINS, MAN and Axels FAP and MB.
  • Audio-video equipment: DVD, audio and video.
  • Seats: tourist with textile.
  • Equipment option: freezer, mini-kitchen.
