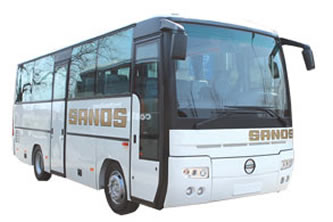

The SANOS S-608 Minibus



      The bus SANOS model S608 belongs to the class of the tourist buses. According to the latest European standard, we are mounting CUMMINS engines, type ISBe 170. The engine power is 125 kW (170 Ps). Our customers can choose between two types of engines MAN D0834 and MB OM904 LA. For bigger passenger’s security and better performance of the bus we are mounting modern systems ABS and ASR. The bus has 31+2 seats, and as additional equipment we are installing mini-kitchen, driver’s cabin, toilet-cabin and fridge. Luggage compartment is 3,5 m³, depending of the additional equipment. The bus is with 3.170 mm height, 2.400 mm width and 7.955 mm length. Fuel tank capacity is 270 liter.



TECHNICAL INFORMATION



DIMENSIONS

Height:

 3170 mm

Internal height:

2060 mm

Entry height (from the road):

320 mm

Length:

7955 mm

Length from front part by 1st axle:

1775 mm

Length from main axle by rear part:

2420 mm

Width:

2400 mm

PERFORMANCE

Maximum speed:

123,8 km/h

Number of seats:

31 + 2

Chassis:

SANOS

Vehicle own weight:

7800 kg

Carrying capacity of axles:



Front axle:

5000 kg

Rear axle:

9000 kg

Vehicle maximum:

13000 kg

Turning circle:

17500 mm

POWER UNIT

Engine - manufacturer / type:

CUMMINS / ISBe 170

Engine power:

125 kw / 170 hp

Engine displacement:

3900 cm³

Type and number of cylinders:

R4

Max. torque Nm / 1/ min:

600 / 1200 - 1600

Piston diameter / motion:

102 / 120 mm

Compression degree:

17,3 : 1

Gearbox - manufacturer / type:

ZF / 6S-700B

Transmission:

6 + R

Differential:

i = 3,91

Steering-wheel - manufacturer / type:

PPT / 5038

Clutch - manufacturer / type:

RUEN / GF

Axles

  Front:

RABA A-501.05-3100

  Rear:

RABA A-106.52-3300

OTHER INFORMATION

Pneumatics - wheels:

245 / 70 R 19,5 - (6+1)

Rims / dimensions:

7,5 x 19,5

Brakes:

pneumatic / double - circle

Systems:

ABS / ASR

Batteries:

2 x 12 V / 180 Ah

Air conditioner:

Konvekta HKL - 50

Tank volume:

270 lit.

Gradient:

26 %

Luggage compartment:

 3,5 m³

  • Brakes: all – drum.
  • Suspension: shock absorbers, air bellows and back stabilizer.
  • Heating system: water heater and radiators.
  • Type and number of doors: 2 x single winged doors – pneumatic.
  • Option: engine MAN 00834, MB 0M904LA.
  • Audio-video equipment: DVD, audio and video.
  • Seats: tourist with textile.
  • Equipment option: freezer, mini-kitchen, toilet-cabin, driver’s sleep cabin and driver’s power window.
