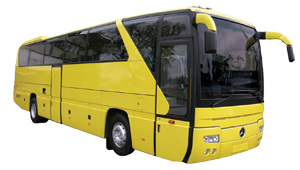

The SANOS S-403 Tourist Coach





     The The model S403 belongs to the class of luxurious tourist busses. It is intended to be used for long distance destinations. According to the new European standards, this model of bus has built in engine of the type DAF, model XE 315 C. The power of the engine is 315ps or 428ps. For bigger security of the passengers and better performances of the bus, we are mounting the up-to-date systems ABS, ASR and the hydraulic ZF Retarder in it. The bus has 51 seats and as additional equipment, according to the wishes of the buyers, mini-kitchen, driver's sleeping cabin, toilet cabin and fridge can be mounted. The luggage compartment is around 11m³, depending of the additional equipment.



TECHNICAL INFORMATION



DIMENSIONS

Height:

 3680 mm

Internal height:

2080 mm

Entry height (from the road):

330 mm

Length:

11980 mm

Length from front part by 1st axle:

2515 mm

Length from main axle by rear part:

3135 mm

Distance between axles:

6330 mm

Width:

2500 mm

PERFORMANCE

Maximum speed:

126 km/h

Number of seats:

51 + 2

Chassis:

SANOS

Vehicle own weight:

13350 kg

Carrying capacity of axles



Front axle:

6600 kg

Rear axle:

11500 kg

Vehicle maximum:

18000 kg

Turning circle:

23000 mm

POWER UNIT

Engine - manufacturer / type:

DAF / XE 315 C

Engine power:

315 kw / 428 ks

Engine displacement:

12600 cm³

Type and number of cylinders:

R6

Max. torque Nm / 1/ min:

1950 / 1000 - 1500

Gearbox - manufacturer / type:

ZF / 8S 2100 BD

Transmission:

8 + R

Differential:

i = 3,33

Steering-wheel - manufacturer / type:

ZF / 8042

Clutch - manufacturer / type:

F&S 430 GF

Axles

  Front:

FAP / VO4 / 13DL-7

  Rear:

FAP / HO4 / 01DL-11,5

OTHER INFORMATION

Pneumatics - wheels:

295 / 80 R 22,5 - (6+1)

Rims / dimensions:

8,25 x 22,5

Brakes:

pneumatic / double - circle

Systems:

ABS / ASR

Retarder:

ZF

Batteries:

2 x 12 V / 180 Ah

Air conditioner:

Konvekta

Tank volume:

2 x 270 lit.

Gradient:

25,3 %

Laguage compartment:

 11 m³

  • Brakes: all – drum.
  • Suspension: shock absorbers, air bellows and back stabilizer.
  • Heating system: water heater and radiators.
  • Tupe and number of doors: 2 x single winged doors – pneumatic.
  • Option: engine CUMMINS ISLe.
  • Audio-video equipment: DVD, audio and video.
  • Seats: tourist with textile.
  • Equipment option: freezer, mini-kitchen, toilet-cabin, driver’s sleep cabin and driver’s power window.
