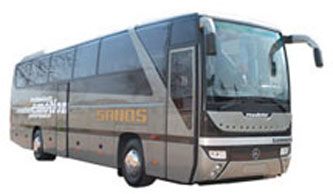

The SANOS S-715 Tourist Coach



     The new prototype luxurious coach S715 is with length of 11980 mm, width 2500 mm and height 3830 mm. This coach is built on the basis of MB OC500RF -1842 chassis.
      The coach has capacity of 49+2 passengers. The engine is MB with 422 hp. Here are installed the following modern systems: ABS, ARS and EBS. The capacity of the fuel tank is 415 liters. As additional equipment we can install: fridge, mini-kitchen, toilet cabin and driver's sleeping cabin.



TECHNICAL INFORMATION



DIMENSIONS

Height:

 3830 mm

Internal height:

2100 mm

Entry height (from the road):

340 mm

Length:

11980 mm

Length from front part by 1st axle:

2535 mm

Length from main axle by rear part:

3395 mm

Distance between axles:

6050 mm

Width:

2500 mm

PERFORMANCE

Maximum speed:

120 km/h

Number of seats:

49 + 2

Chassis:

MB / OC500RF-1842

Vehicle own weight:

13500 kg

Carrying capacity of axles



Front axle:

7100 kg

Rear axle:

11500 kg

Vehicle maximum:

18600 kg

Turning circle:

23500 mm

POWER UNIT

Engine - manufacturer / type:

MB / OM 457 LA Euro 3

Engine power:

310 kw / 422 кс

Engine displacement:

11970 cm³

Type and number of cylinders:

R6

Max. torque Nm / 1/ min:

1900 / 1100

Piston diameter / motion:

128 / 155 mm

Gearbox - manufacturer / type:

MB / GO 190 + R115

Transmission:

6 + R

Differential:

i = 3,156

Steering-wheel - manufacturer / type:

MB / LS 6; ZF / 8098

Clutch - manufacturer / type:

MB / 430 GX

Axles

  Front:

ZF RL 75 / E

  Rear:

MB / HO4-02CL-11,5

OTHER INFORMATION

Pneumatics - wheels:

295 / 80 R 22,5 - (6+1)

Rims / dimensions:

GINETTI Italy 8,25 x 22,5

Brakes:

pneumatic / double - circle

Systems:

ABS / ASR / EBS

Retarder:

Voith VR 115 E

Batteries:

2 x 12 V / 225Ah

Air conditioner:

Konvekta

Tank volume:

415 lit.

Gradient:

51,5 %

Laguage compartment:

 12,5 m³

  • Brakes: all – disks.
  • Suspension: shock absorbers, air bellows and back stabilizer.
  • Heating system: water heater and radiators.
  • Tupe and number of doors: 2 x single winged doors – pneumatic.
  • Audio-video equipment: DVD, video with two slim&flat monitors 15", audio with 2 microphones.
  • Seats: tourist with textile.
  • Equipment option: freezer, mini-kitchen, toilet-cabin, driver’s sleep cabin and driver’s power window.
